Viking Javlin – Oxygen T-Bar Replacement

Compatible Viking Models

The Javelin 14 was also written as “Javlin 14” in some original Viking catalogues and product listings. Both names refer to the compatible Viking ocean ski model covered by this replacement T-bar.

These are older craft, and individual fittings or previous repairs can vary. Compare the replacement T-bar with your existing steering assembly before ordering. If you are unsure, send Kayak and SUP clear photos of the existing T-bar, rudder shaft, retaining pin or bolt and steering-line connections.

How the T-Bar Fits

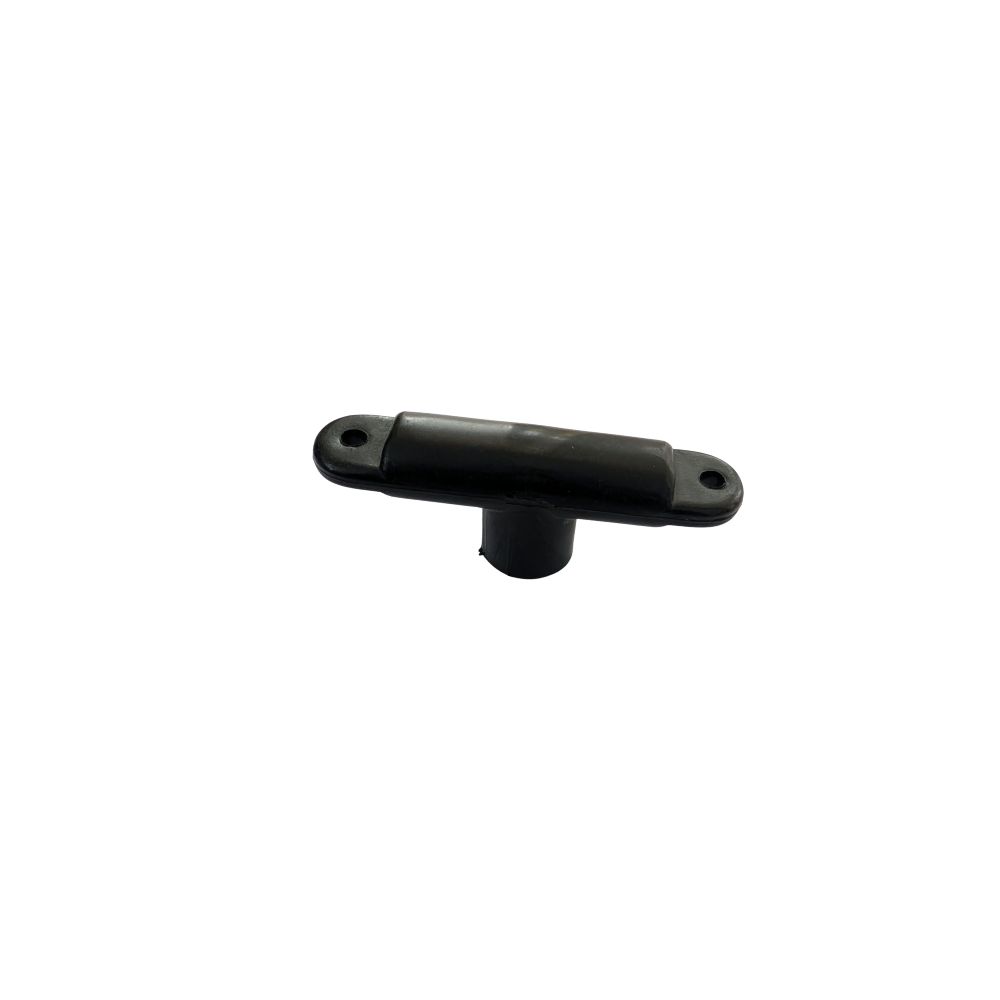

The central socket fits over the rudder shaft, while the attachment point at each end connects to the ski’s steering lines. When the foot controls move one steering line, the T-bar rotates the shaft and turns the rudder.

1. Photograph the original steering-line routing and T-bar position before disassembly.
2. Disconnect the steering lines and remove the existing retaining bolt or pin.
3. Remove the damaged T-bar from the rudder shaft.
4. Test-fit the replacement T-bar on the existing or replacement rudder shaft.
5. Centre the rudder and T-bar, then secure them with suitable retaining hardware.
6. Reconnect the steering lines to the T-bar’s end attachment points.
7. Adjust both lines evenly and check full, smooth movement in both directions.

Reuse retaining hardware only if it is in good condition and fits correctly. If you are not confident installing or aligning the steering assembly, have the work completed by an experienced kayak repairer or technician.

Restore the Steering Connection

The T-bar is the mechanical link between the foot-controlled steering lines and the under-stern rudder. A correctly fitted and centred T-bar allows pedal input to rotate the rudder shaft, helping the ski hold its heading and change direction in wind, current, chop and surf.

Checks Before Returning to the Water

• The retaining bolt or pin is fully secured.
• The T-bar is centred when the rudder is straight.
• The T-bar rotates without binding.
• The steering lines are correctly attached.
• Both steering lines are evenly tensioned.
• The rudder reaches both steering directions smoothly.

Complete the first water test in calm, controlled conditions before relying on the repaired steering system offshore or in surf.
